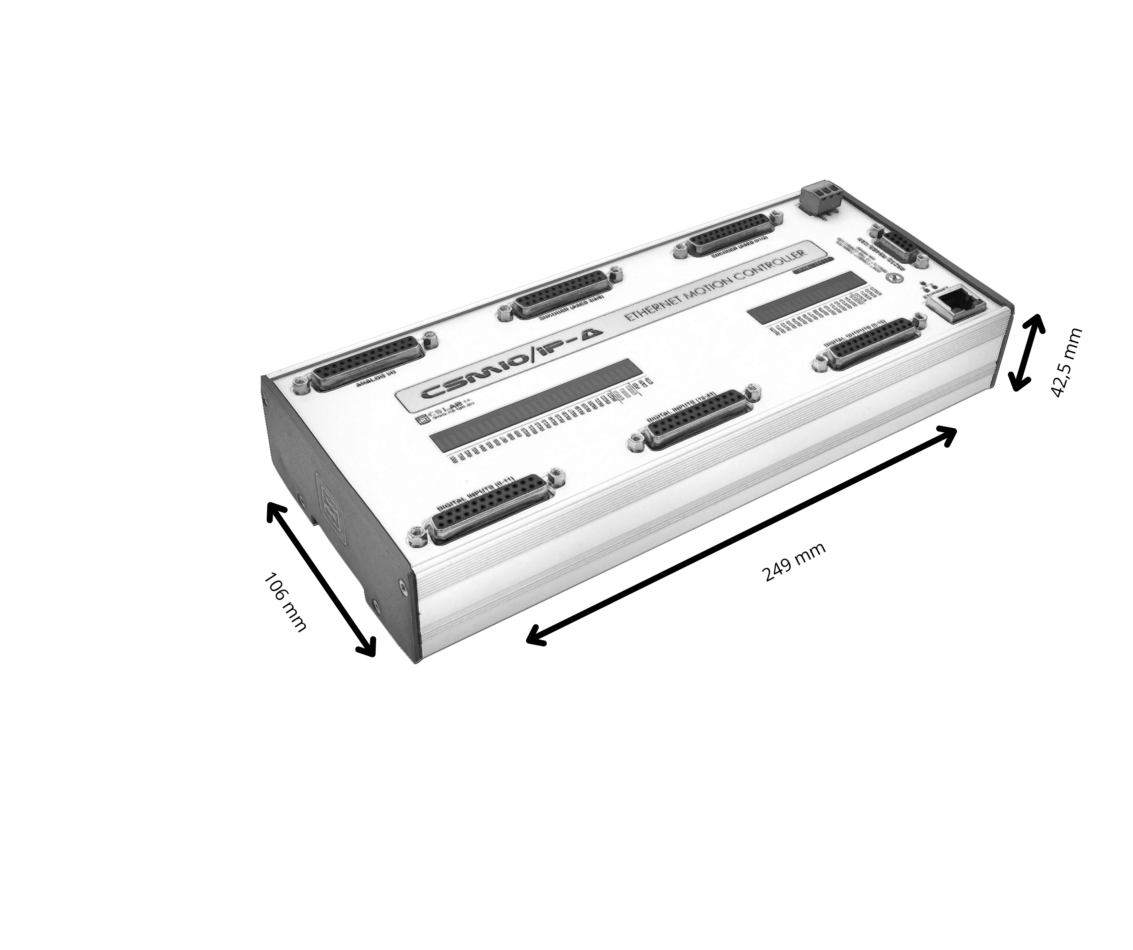

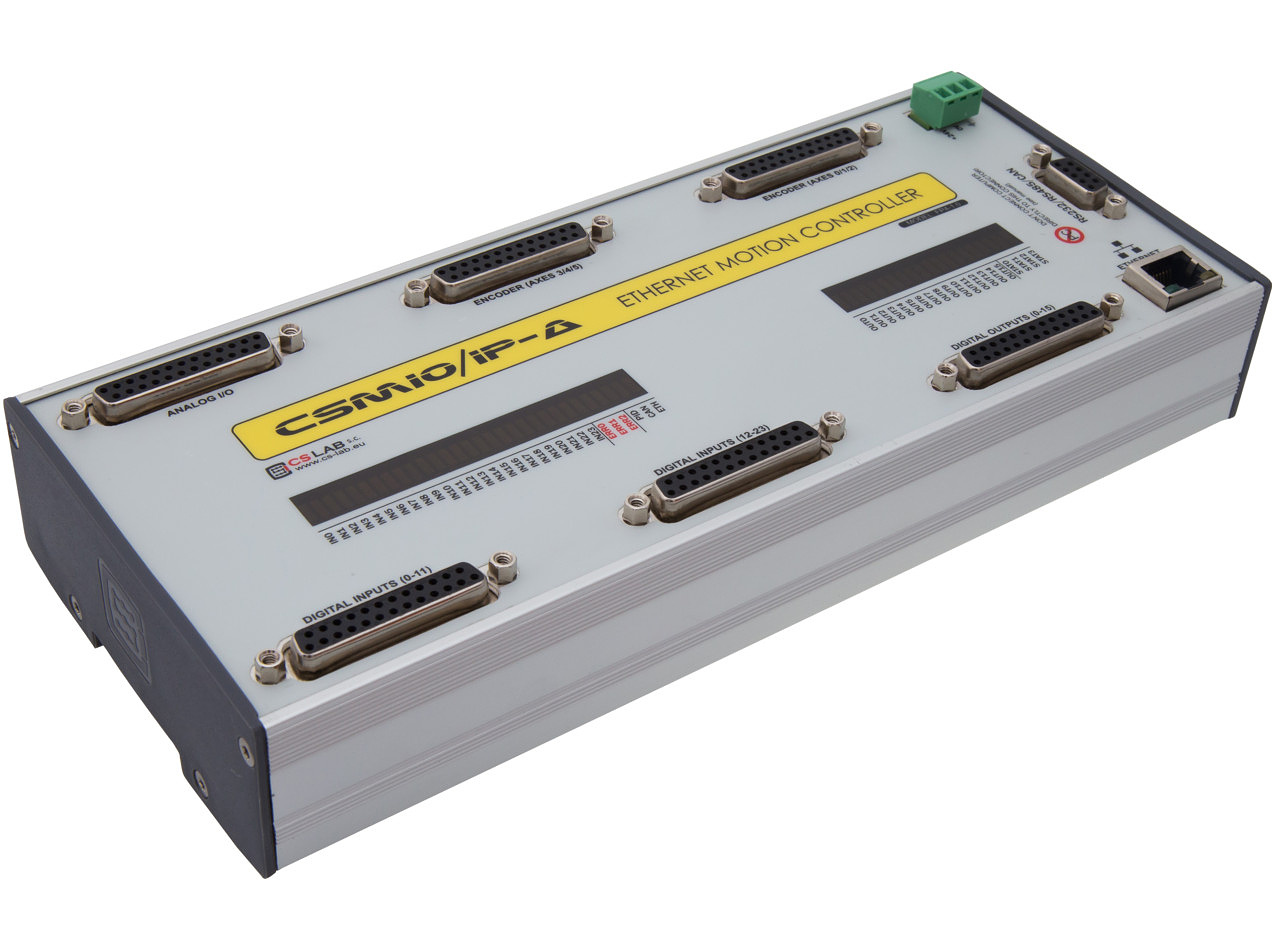

6-axis Motion Controller. CSMIO/IP-A board (+/- 10V), Ethernet

750,00 €

Category:

CSMIO/P-A is recommended to users/companies who:

  • have a machine in good mechanical condition, equipped with well-working servo drives controlled by +/-10V signal with broken or obsolete motion controller e.x. minimal internal memory,
  • retrofit original CNC machines that require a large number of digital signals for tool magazines or automatic transmission support,
  • build new, fast and precise milling machines or routers equipped with +/-10V servo drives,
  • build very large machines equipped with riding gantry that needs to be driven by two independent servo drives +/-10V Master and Slave. It’s a Slave axes function that enables software geometry correction in case of small construction inaccuracies or low machine rigidity,
  • plan to develop/expand their control system in the future with additional modules (threading, JOG- handwheel). CSMIO/IP-A  can be successfully used with milling machines, lathes, routers, plasma, or laser cutters.

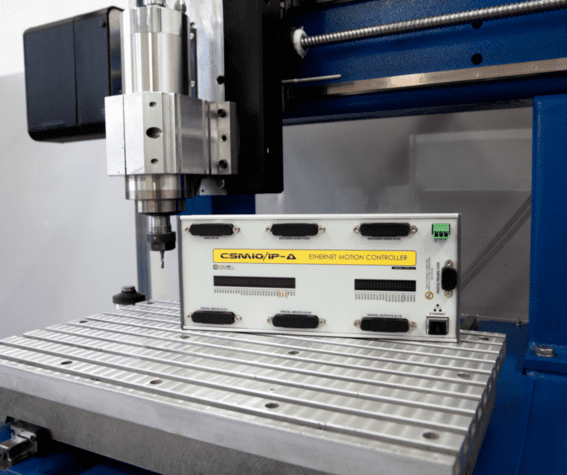

CSMIO/IP-A is a 6-axis motion controller. In combination with a PC and control software (simCNC, Mach3, Mach4) it’s an ideal system for CNC machines control. CSMIO/IP-A was designed for professionals, CNC automation manufacturers,  retrofit specialists, and hobbyists, who want to equip their machine tool with an efficient, stable, and flexible CNC control system for a reasonable price.

How does it work? In short – control software (simCNC, Mach3, Mach4) installed on a PC is the brain and CSMIO/IP-A controller is the heart of the entire control system. Control software (simCNC, Mach3, Mach4) changes gcodes into motion trajectory and sends it through the network connection to the CSMIO/IP-A. Motion trajectory (axis position set value) with the feedback signal (axis position real value) is transmitted to the PID loop. Basing on these two values the PID loop generates a +/-10V signal. This division of tasks makes PC is less loaded than if using a classic parallel LPT port.
